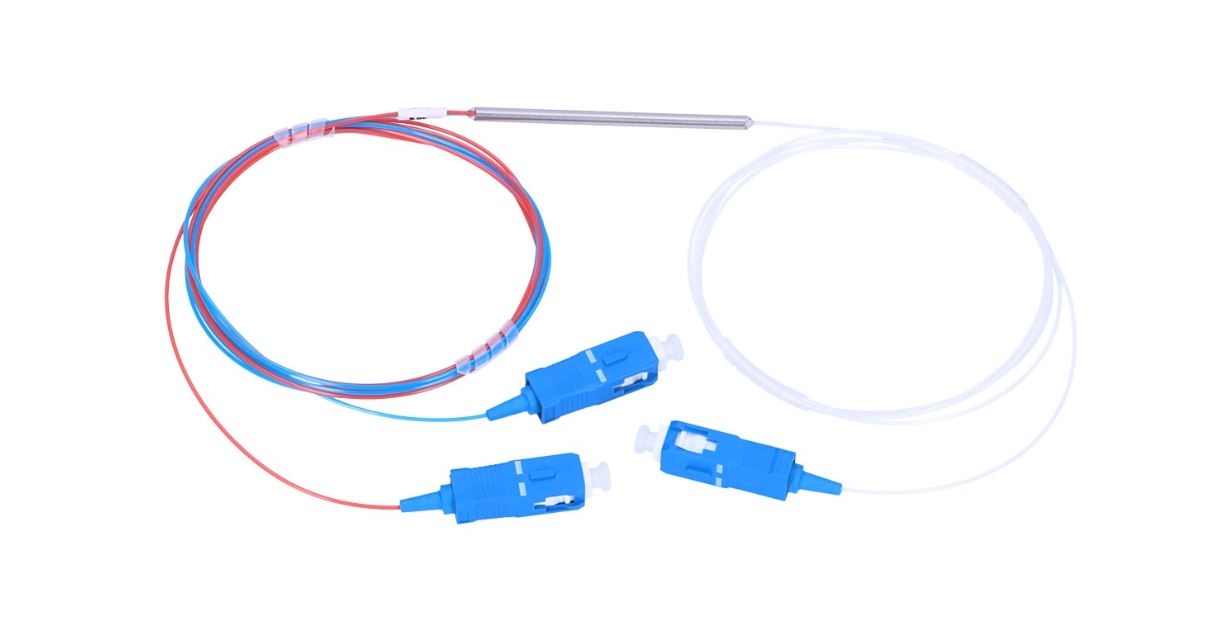

EXTRALINK 1:2 FBT Optinis daliklis 30:70 SC/UPC 900UM 1M(EL-SCUPC-FBT-30:70)
Produkto specifikacijos:
Test Wavelength [nm] : 1310/1490/1550
Coupling Ratio [%] : 30:70
Insertion Loss - 1310nm [dB] : 1.70 (red); 5.40 (blue)
Insertion Loss - 1490nm [dB] : 1.69 (red); 5.43 (blue)
Insertion Loss - 1550nm [dB] : 1.70 (red); 5.50 (blue)
PDL [dB] : ≤ 0.15
Directivity [dB] : ≥ 55
Operating Temperature [°C] : -20 to 70
Storage Temperature [°C] : -40 to +85
Fiber Length [m] : ≥ 1.0
Dimension [mm] : 3 x 54
Pigtail Type : 0.9 Loose Tube
Fiber Type : SM-28E 900um
Connector : SC/UPC
