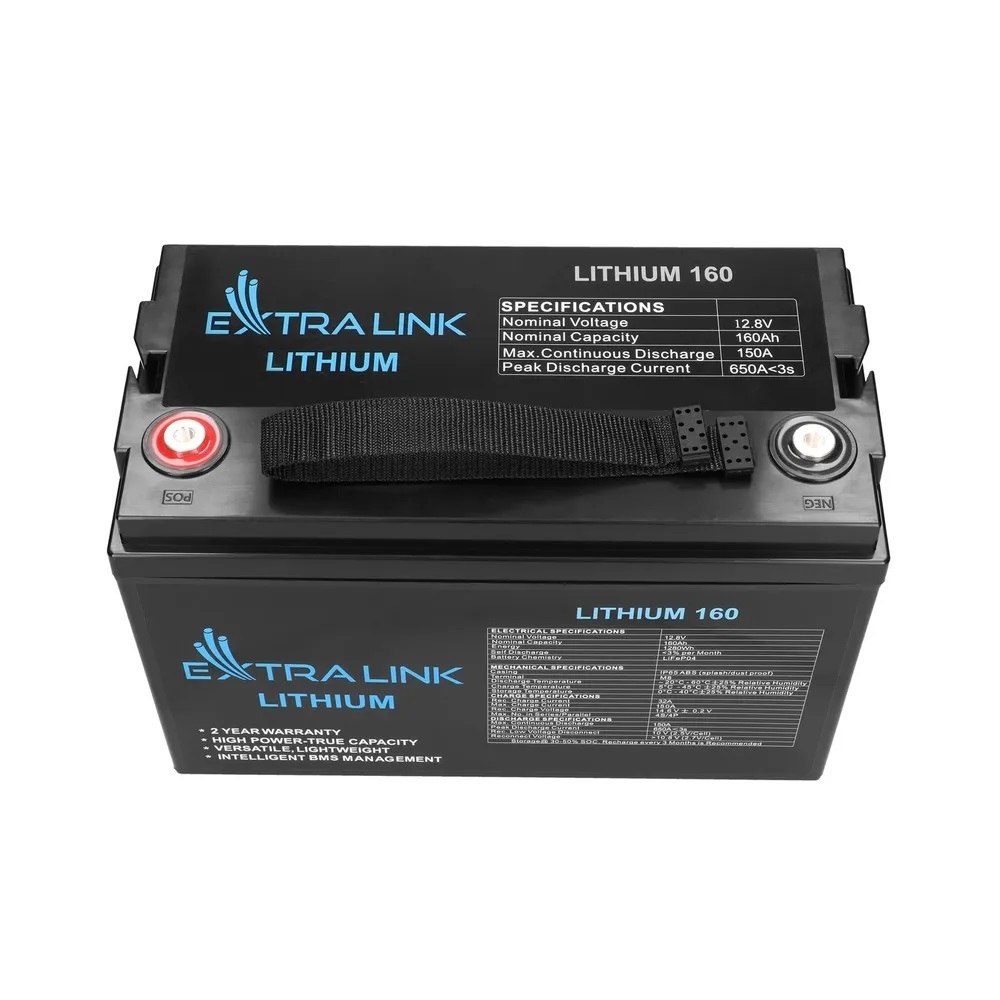

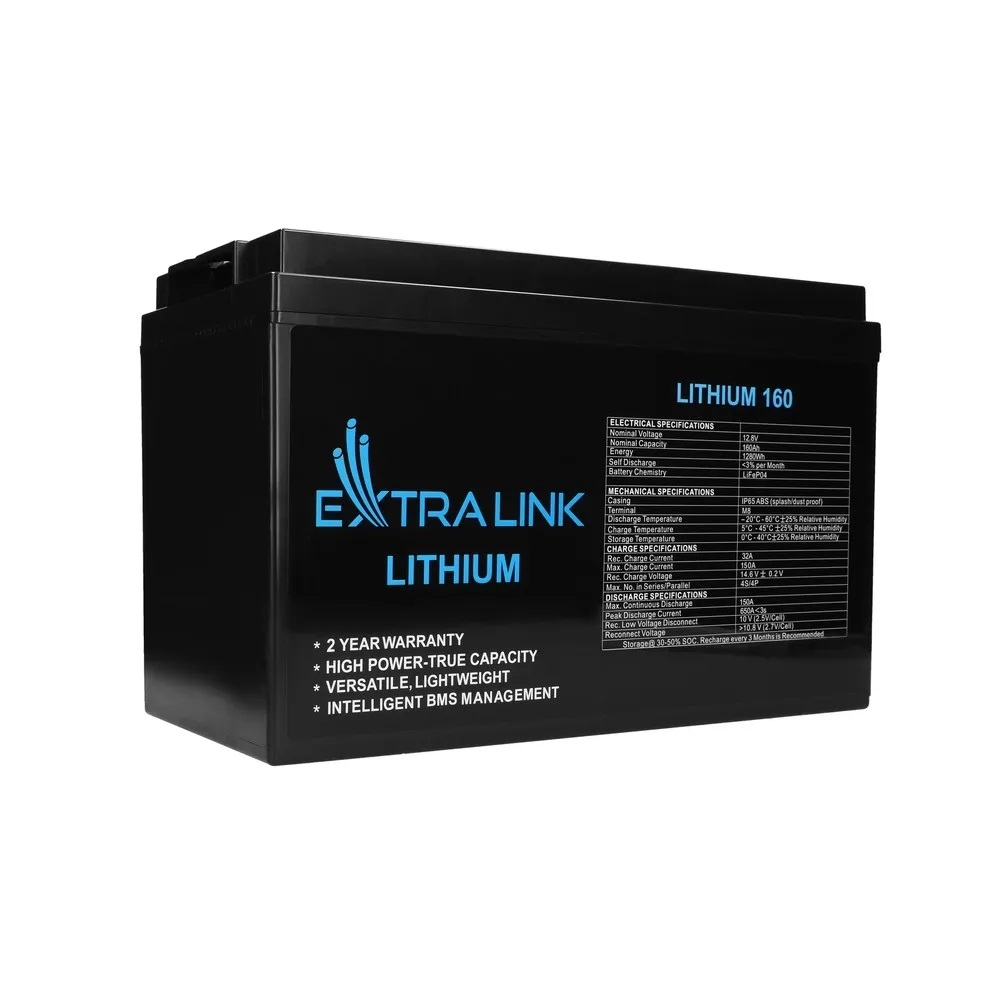

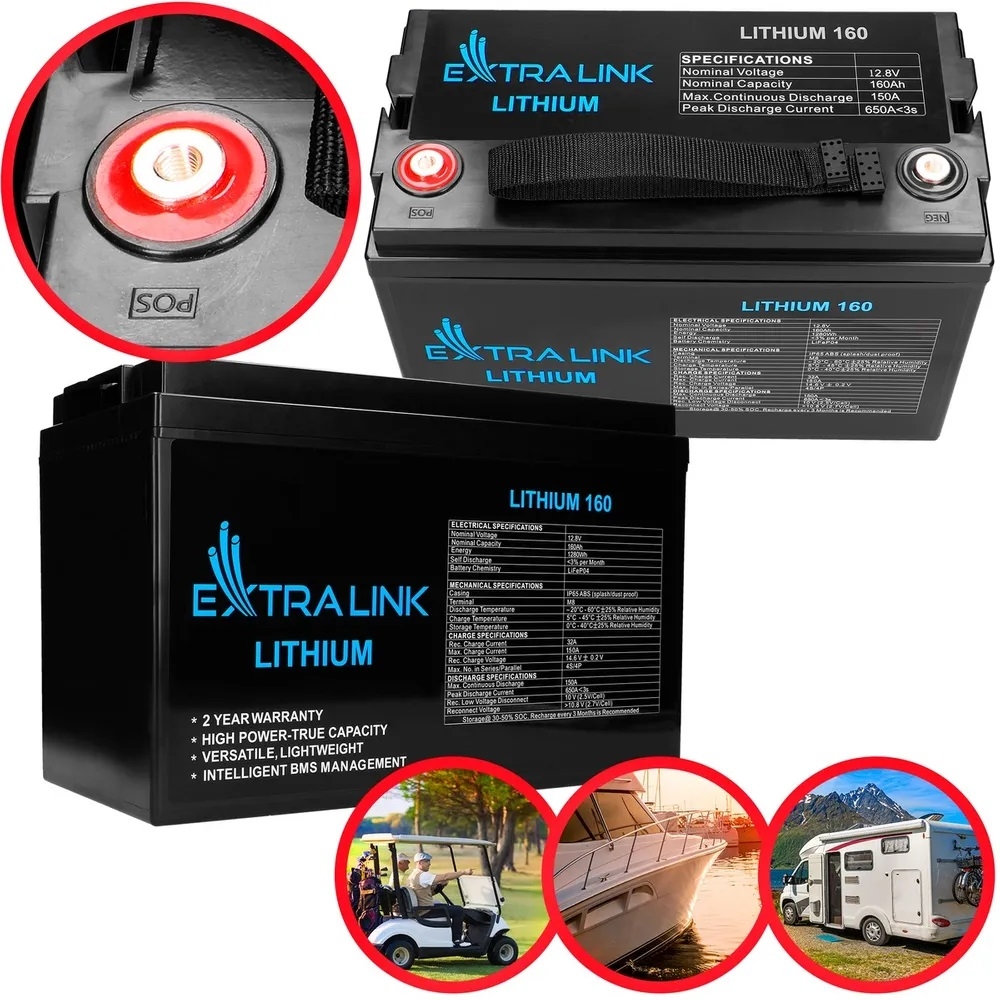

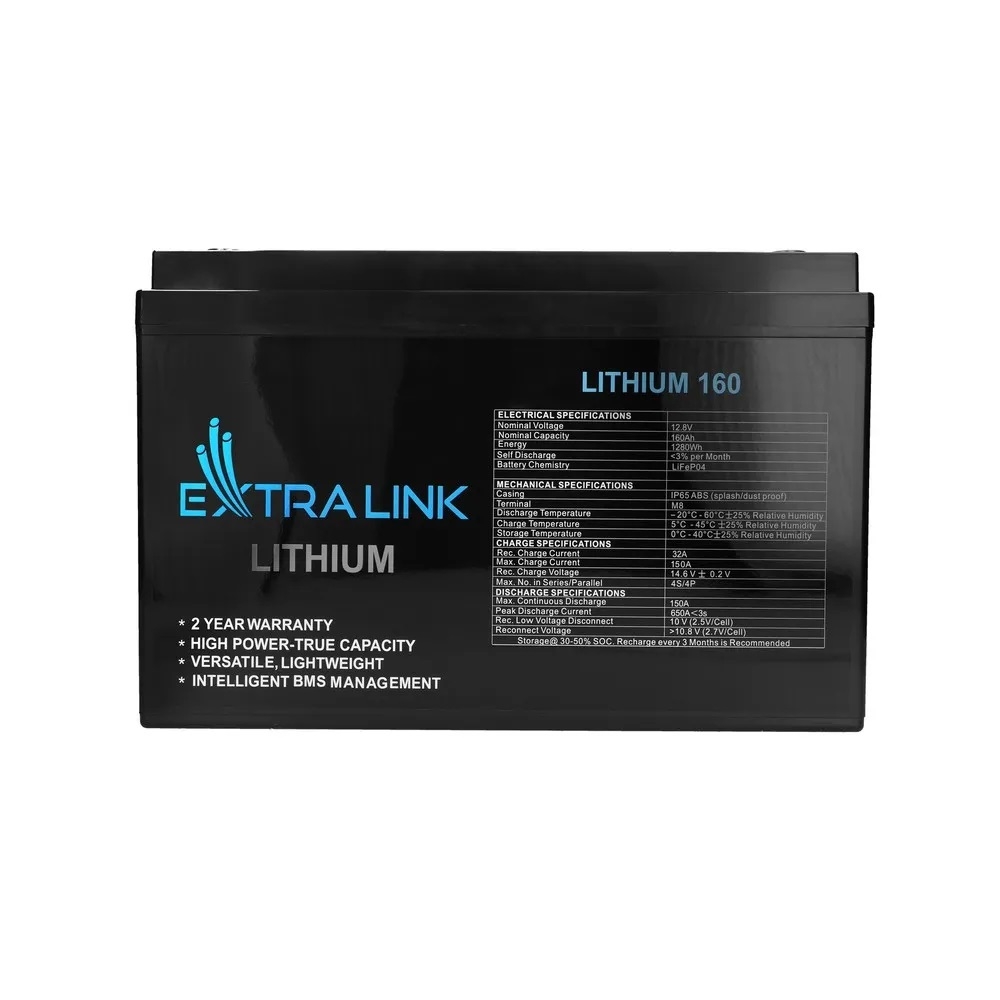

EXTRALINK LiFePO4 Akumuliatorius 12.8V 160Ah (EL-LiFePO4-BAT-12.8V-160AH)

Kodas: EL-LiFePO4-BAT-12.8V-160AH
ID: #4279

Nominali talpa: 160 Ah | Įtampa: 12.8V | > 2000 ciklų | Nominalus iškrovimo srovės stipris: 50A | Didžiausias nuolatinis iškrovimo srovės stipris: 150A | Iškrovimo temperatūra: -20°C to 60°C (-4F to 140F) | IP65 | LiFePO4 (Ličio geležies fosfatas) | BMS

546.25€ su PVM

Kaina be PVM: 451.45€

Kiekis:


Produkto savybės:

Extralink LiFePO4 lithium-iron-phosphate batteries with a nominal capacity of 160Ah offer a whole range of advantages over traditional battery-based solutions made with other technologies. Extralink LiFePO4 means longer life, no maintenance, remarkable safety, lightweight, improved discharge and charging efficiency. LiFePO4 batteries, due to their long life and zero maintenance, are the best investment for years to come.

Fully maintenance-free
Extralink's LiFePO4 160Ah batteries do not require active maintenance to extend their life. In addition, these batteries have no memory effect, and the low self-discharge rate (<3% per month) of the LiFePO4 battery makes it possible to store them for longer periods of time.

Low weight and high power density
12V lithium-iron-phosphate (LiFePO4) batteries offer high power density, making the lithium battery relatively small and lightweight. Compared to lead-acid batteries, Extralink's LiFePO4 type provides high energy density and is at least half as light. Choose Extralink LiFePO4 if you want to reduce your concerns about battery weight and size!

Large number of duty cycles
LiFePO4 batteries last more than 2,000 cycles while maintaining an average of 80% of their rated capacity. In comparison: a traditional lead-acid battery lasts 300-500 cycles at most. The long life makes the Extralink LiFePO4 battery an excellent economic choice.

Wide range of applications
Extralink's LiFePO4 12V lithium-iron-phosphate battery is an ideal energy storage for cars, buses, logistics vehicles, boats, emergency power, etc. due to its safety and low cost advantages. Excellent as a battery for an RV.

Produkto specifikacijos:

Type LiFePO4
Nominal voltage 12.8V
Rated capacity 160.0Ah (C5.25°C)
Total energy 1280Wh
Internal resistance ≤15 mΩ
Lifespan Over 2000 cycles at 1C 100% DOD
Monthly self-discharge <3%
Charging efficiency 100% @ 0.5C
Discharge efficiency 96-99% @1C
Charging parameters
Charging voltage 14,6 ± 0,2 V
Charging current 80A
Max. charging current 150A
Charge cut-off voltage 15.6 V ± 0.2 V
Discharge parameters
Rated discharge current 50A
Maximum continuous discharge current 150A
Max. discharge current 480A (<3s)
Discharge cut-off voltage 10V
Charging temperature 0°C to 45°C (32F to 113F) at 60±25% relative humidity
Discharge temperature -20°C to 60°C (-4F to 140F) at 60±25% relative humidity
Storage temperature 0°C to 40°C (32F to 104F) at 60±25% relative humidity
Water and dust resistance IP65
Mechanical parameters
BMS Yes
Housing ABS plastic
Dimensions 330 x 173 x 212 mm
Weight 15.5 kg
Terminal M8
