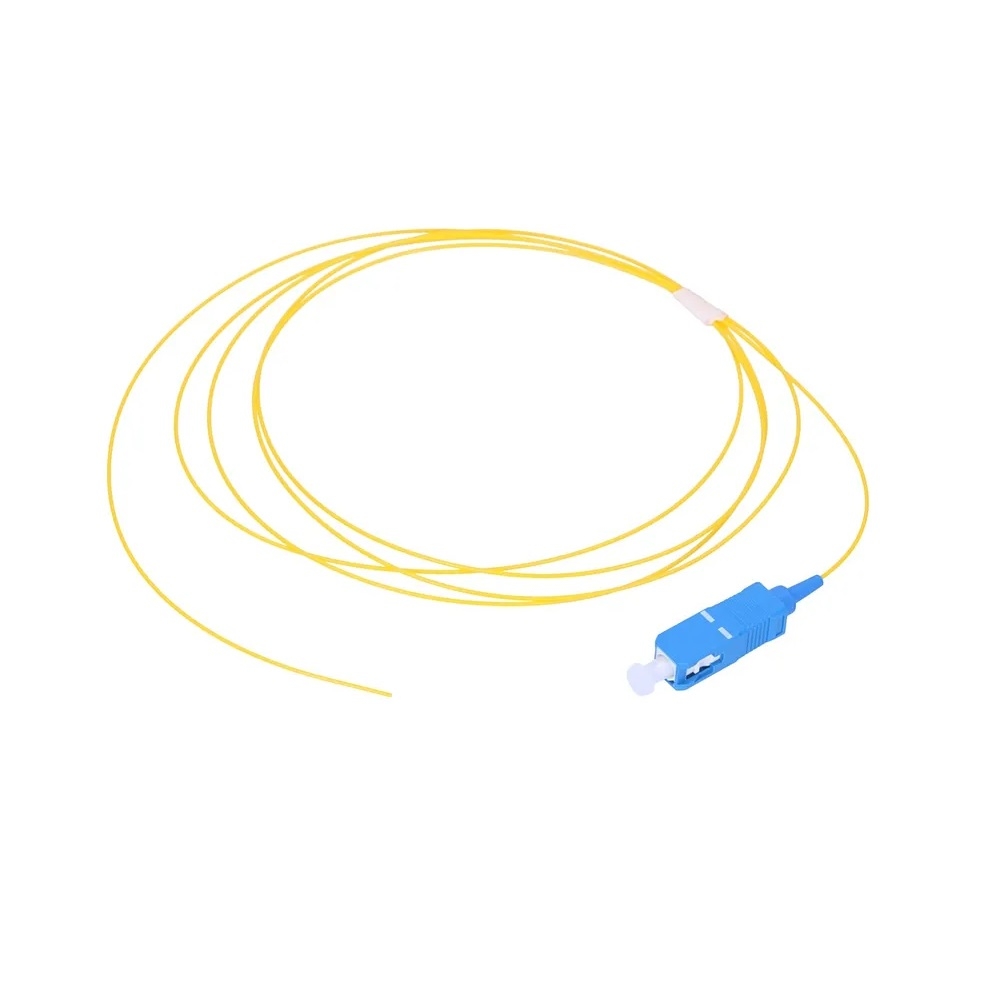

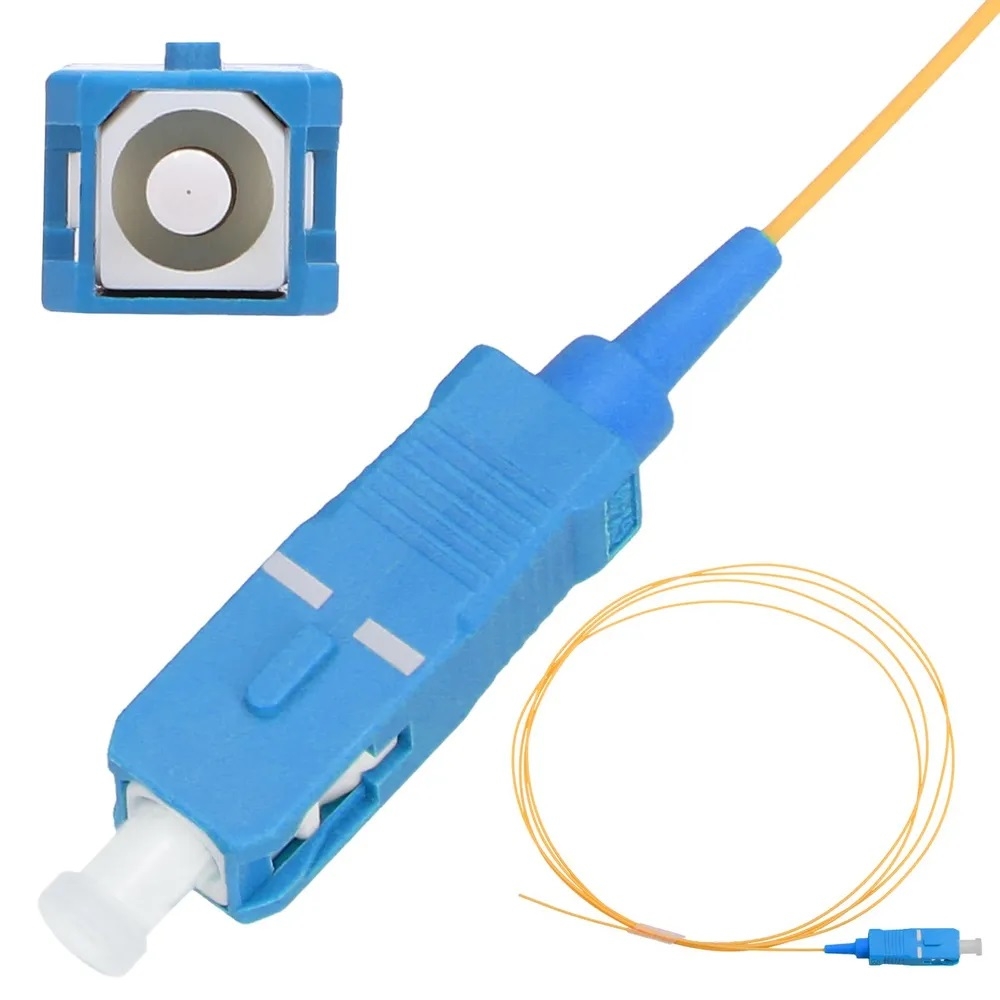

EXTRALINK SC/UPC Single Mode Pigtail (Sujungimo kebelis) 900UM G.657A, 1m (EL-SCUPC-SM-PGTL-1)
Kodas:
EL-SCUPC-SM-PGTL-1
ID:
#4270
Šviesolaidžio tipas: Single mode | Jungtis: SC/UPC | Skaidulos storis: 900UM | Pigtail ilgis: 1m | IL: <0.3 dB, RL: >50 dB(UPC), RL: >60 dB(APC), RL: >35 dB(MM)
1.00€ su PVMKaina be PVM: 0.83€ |
Produkto savybės:
Pigtail Extralink with SC/UPC connector is made on a single-mode G.657A fiber, which is dedicated for FTTx technology. This fiber is characterized by reduced bending radius, without increasing attenuation. This is a very important feature during the construction of FTTx networks due to the large number of changes of optical line direction and because of the small size of cabinets and distribution boxes. Pigtail is used mainly in client cable terminations in the customer's sockets and in end switchgear.
Produkto specifikacijos:
| Minimum bending radius | 10 mm |
| Random average IL attenuation | 0.15 dB |
| Reflectance RL APC | >50 dB |
| Fibre strength | >9 N |
| Operating temperature | -40 ~ +85 °C |
| Fibre diameter | 0.9mm |
| Coating | PVC |
