MIKROTIK R11e-LoRa9 (R11e-LoRa9)
„LoRaWAN“ koncentratoriaus šliuzo (Gateway) kortelė su mini PCIe formos koeficientu 902–928 MHz dažniui. Iki 15 km kaimo aplinkoje ir iki 2 km miesto aplinkoje naudojant „MikroTik LoRa 6.5 dBi“ antenos komplektą.
Produkto savybės:
MikroTik is bringing you new, powerful LoRa products for the fraction of the cost you would expect.

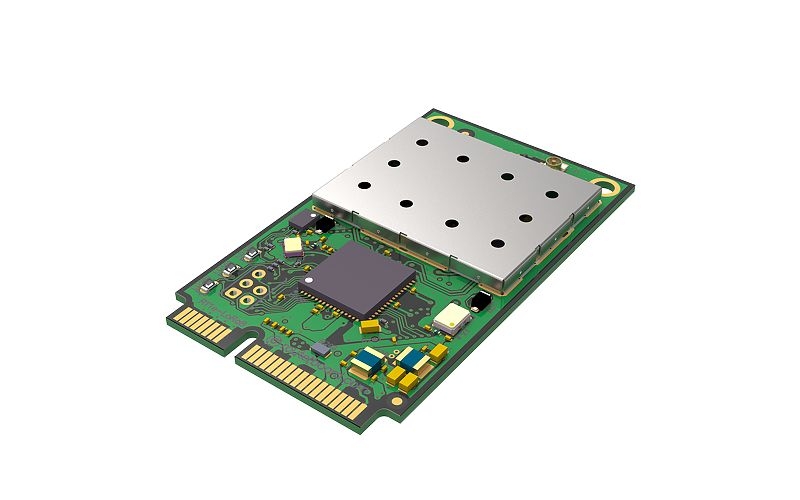

R11e-LoRa9 is a new LoRaWAN concentrator Gateway card in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRaWAN connectivity for any MikroTik product that has mPCIe slot with connected USB lines.
With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.
Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)
Produkto specifikacijos:
Product code | R11e-LoRa9 |
Interface | Mini-PCIe |
Supported class | A and C |
Frequency | 902-928 MHz (AU915-928, US902-928, AS923, KR920-923) |
RF Output power | 902-928 MHz 23 dBm |
Receive max sensitivity | -137 dB @ SF12 |
Range | Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit |
Operating ambient temperature |
-40°C .. +70°C |
Max power consumption | 2 W |
