QuWireless QuMax for Teltonika RUTX50 (AX50M)

Produkto savybės:

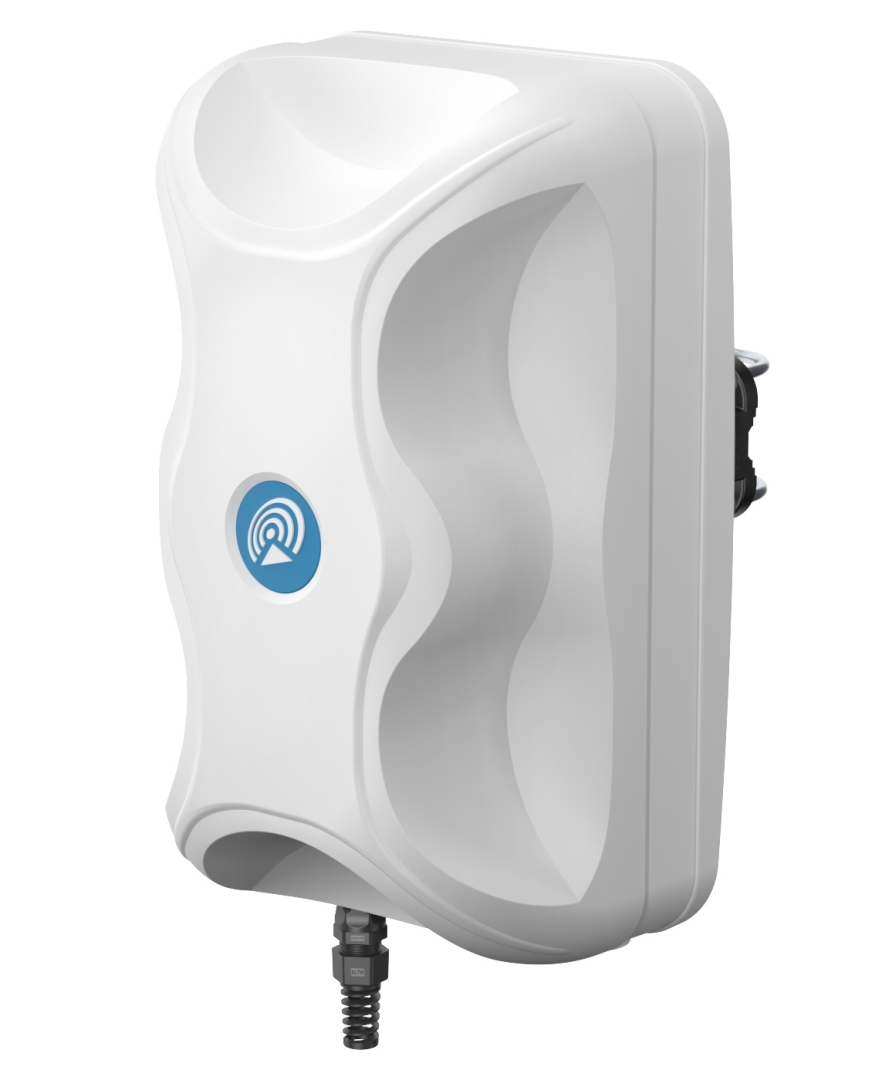

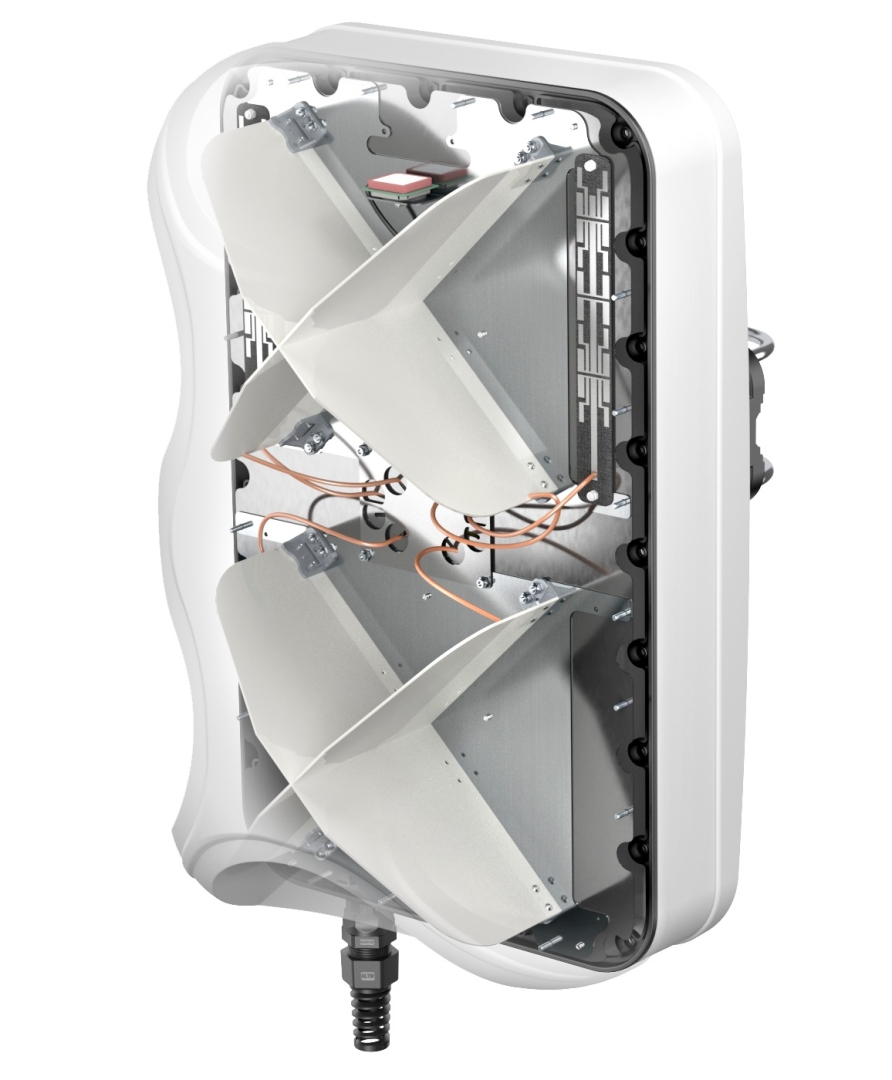

QuMax for RUTX50 is a high performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi and GPS antennas integrated in IP67 enclosure. It offers 7.5 dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments.

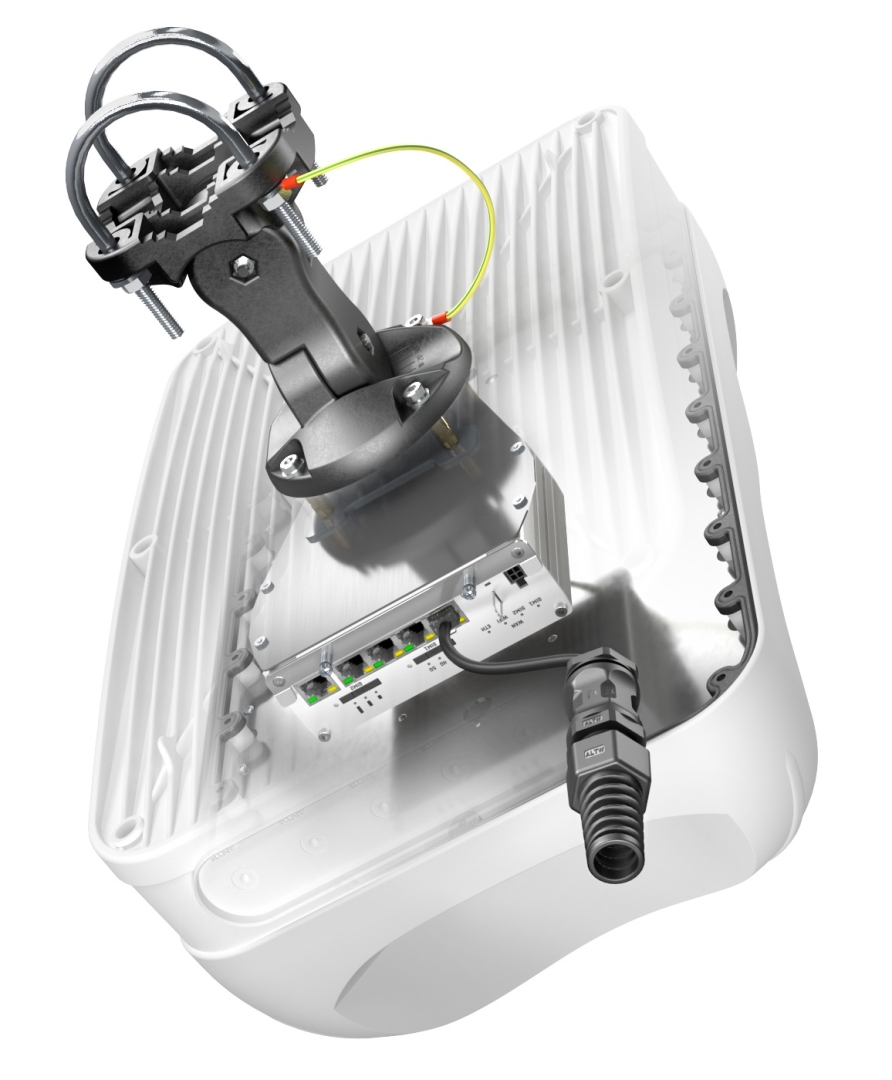

Combining QuMax with RUTX50 inside the antenna housing gives you complete outdoor solution with mulitple use scenarios such as transportation public, energy, mining IoT and more.

Produkto specifikacijos:

5G / LTE ANTENNA SPECIFICATION
Frequency:
   0.617 - 0.96 GHz
   1.7 - 2.7 GHz
   3.3 - 4.6 GHz
   4.7 - 6.0 GHz
Gain
   0.617 - 0.96 GHz: 6 dBi
   1.7 - 2.7 GHz: 7 dBi
   3.3 - 4.6 GHz: 7 dBi
   4.7 - 6.0 GHz: 5.5 dBi
Supported LTE bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106
Supported 5G bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
VSWR: <2.00, max <3.00
Beamwidth: 80°/80° ±15°
Polarization: X (+-45degrees)
Impedance: 50 Ω

Wi-Fi ANTENNA SPECIFICATION
Frequency:
   2.40 - 2.50 GHz
   5.0 - 7.125 GHz
Gain:
   2.40 - 2.50 GHz : 6 dBi
   5.0 - 7.125 GHz : 7.5 dBi
VSWR: <1.70, max <2.00
Beamwidth: 360°/25° ±5°
Polarization: Vertical
Impedance: 50 Ω

MECHANICAL SPECIFICATION
Materials: ABS, aluminum, PTFE, Fiberglass
Connector type: RJ45
Ingress protection: IP67

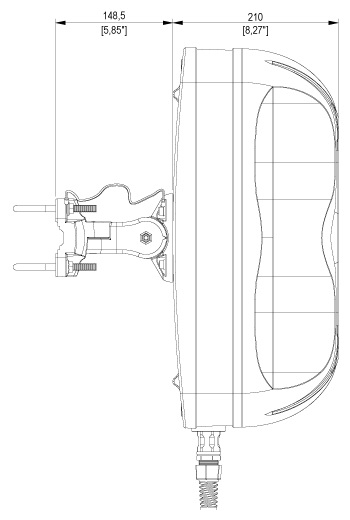

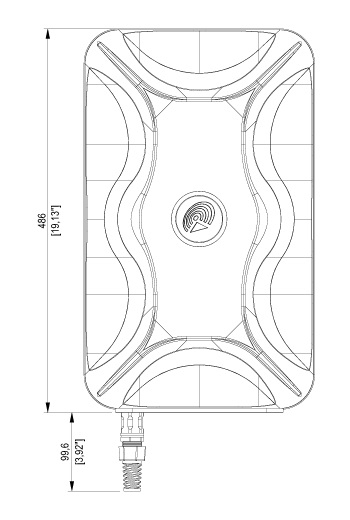

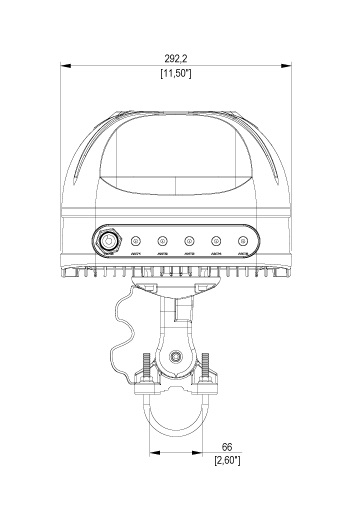

Dimensions: 486.0 x 292.2 x 105.6 mm (19.13 x 11.50 x 4.16 inch)
Weight: 2.8 kg (6.17 lbs)
Operating temperature: From -40°C to 80°C (From -40°F to 176°F)

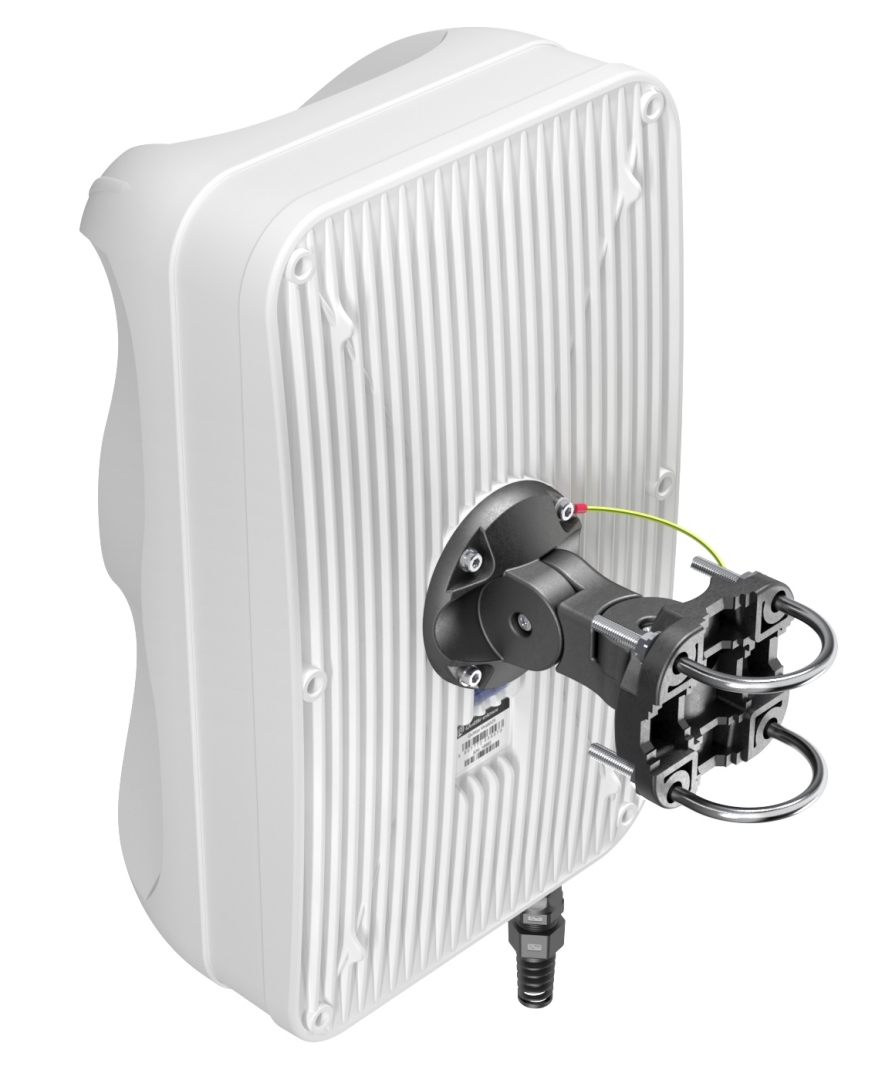

Mast diameter: 25-60mm (0.98-2.36 inch)
