QuWireless QuSpot for Teltonika RUTX50 (AX50S)

Produkto savybės:

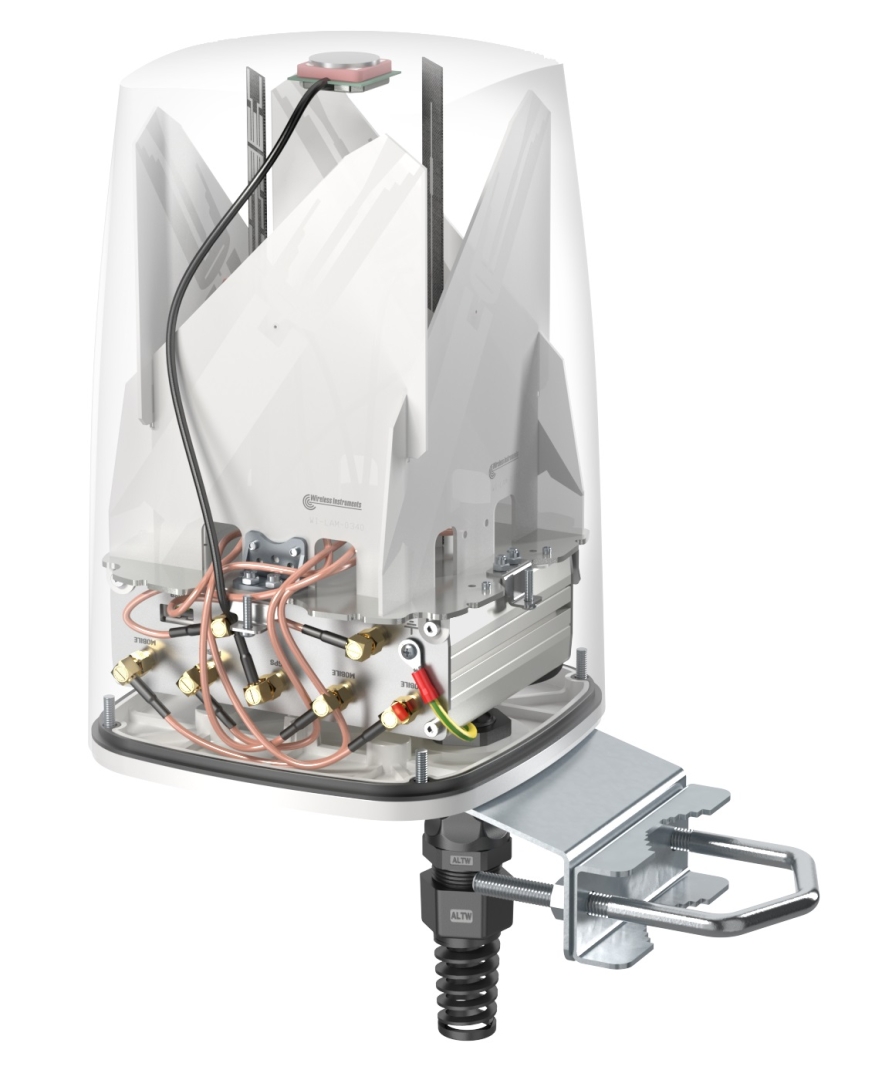

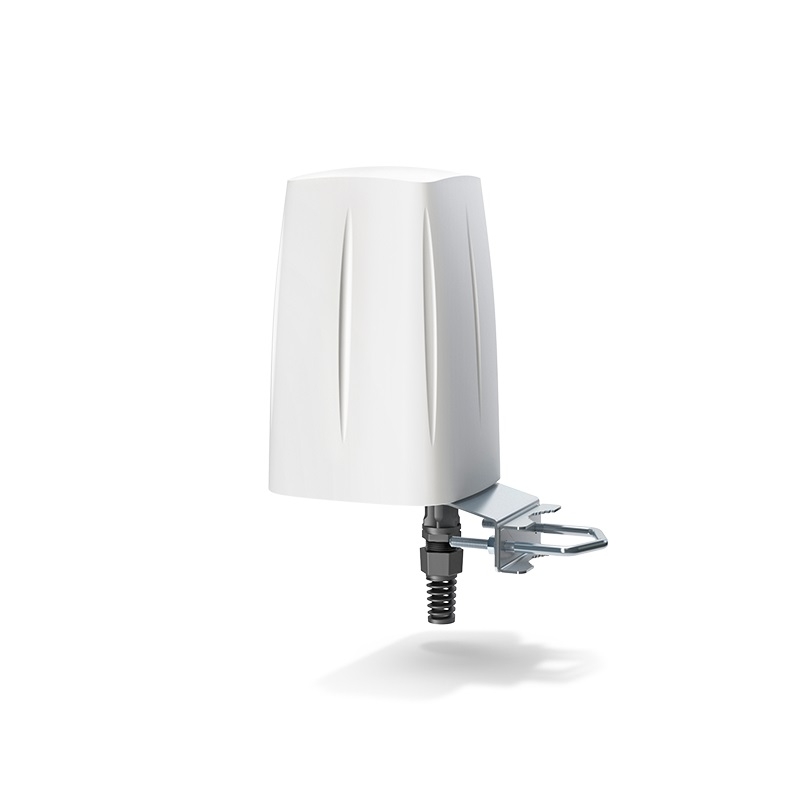

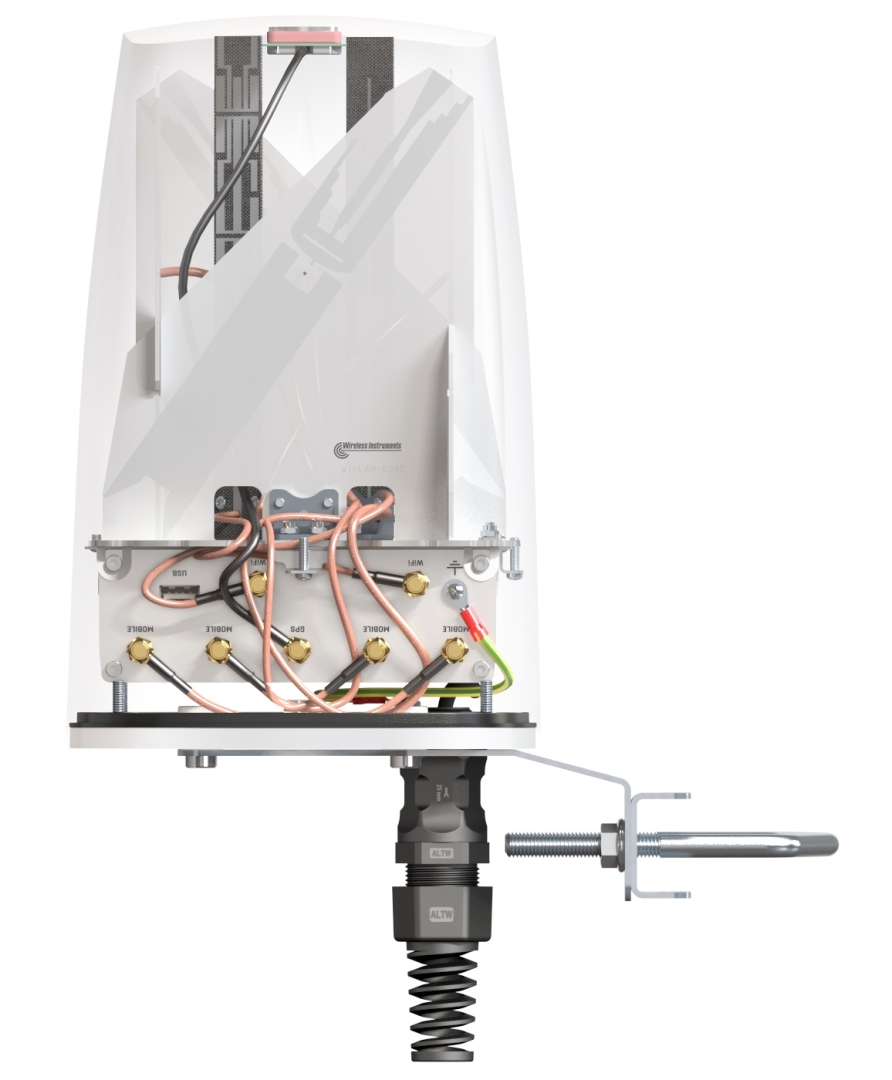

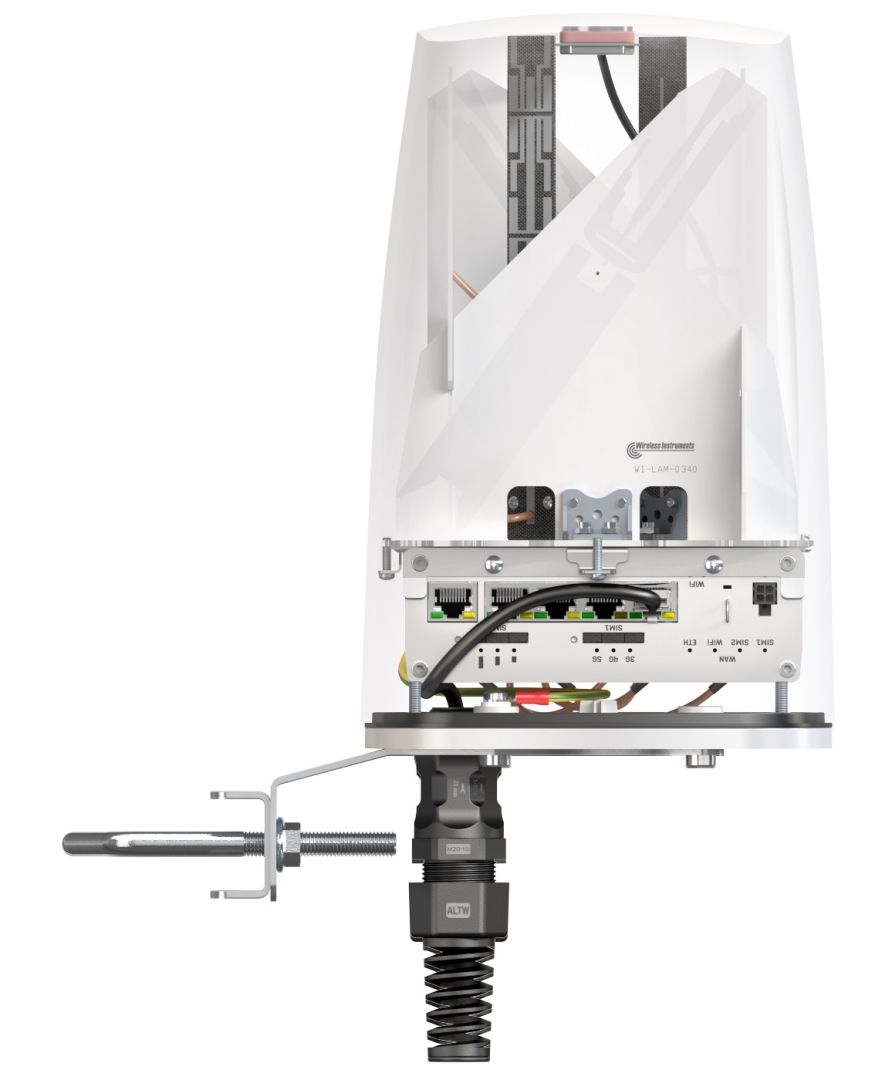

QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTX50 solutions.

QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Produkto specifikacijos:

5G / LTE ANTENNA SPECIFICATION
Frequency:
   617 - 960 MHz
   1.7 - 2.7 GHz
   3.3 - 4.3 GHz
Gain
   617 - 960 MHz : 2 dBi
   1.7 - 2.7 GHz : 4 dBi
   3.3 - 4.3 GHz : 4.5 dBi
Supported LTE bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101
Supported 5G bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
VSWR: <2.00, max <2.50
Beamwidth: 360°/25° ±5°
Polarization: Vertical
Impedance: 50 Ω
Wi-Fi ANTENNA SPECIFICATION
Frequency:
   2.4 - 2.5 GHz
   4.7 - 6 GHz
Gain:
   2.4 - 2.5 GHz : 6 dBi
   4.7 - 6 GHz : 7.5 dBi
VSWR: <1.70, max <2.00
Beamwidth: 360°/25° ±5°
Polarization: Vertical
Impedance: 50 Ω
MECHANICAL SPECIFICATION
Materials: ABS, aluminum, PTFE
Connector type: RJ45
Ingress protection: IP67

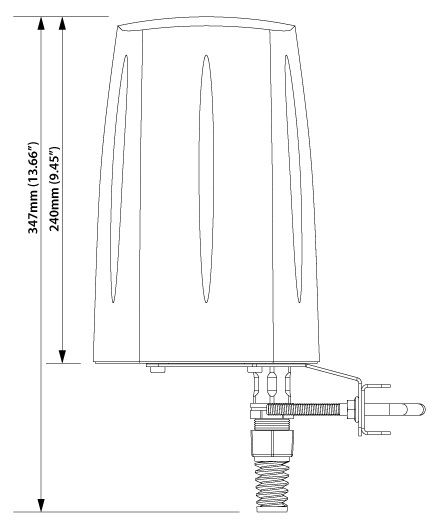

Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)
Weight: 1.5 kg (3.31 lbs)
Operating temperature: From -40°C to 75°C (From -40°F to 167°F)
Mast diameter: 40-60mm (1.57-2.36 inch)
