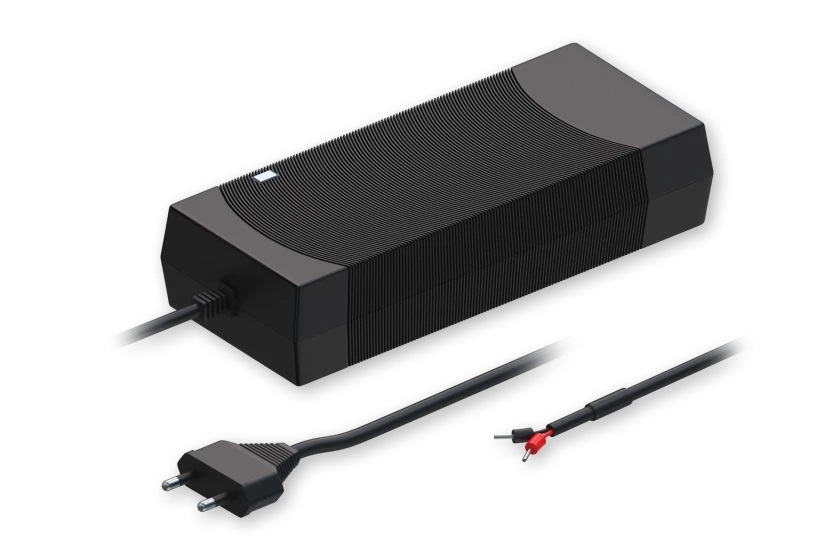

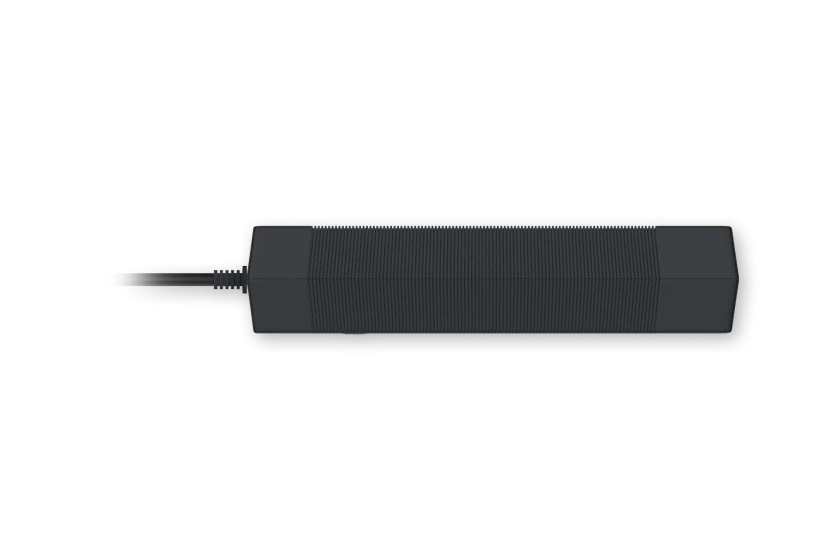

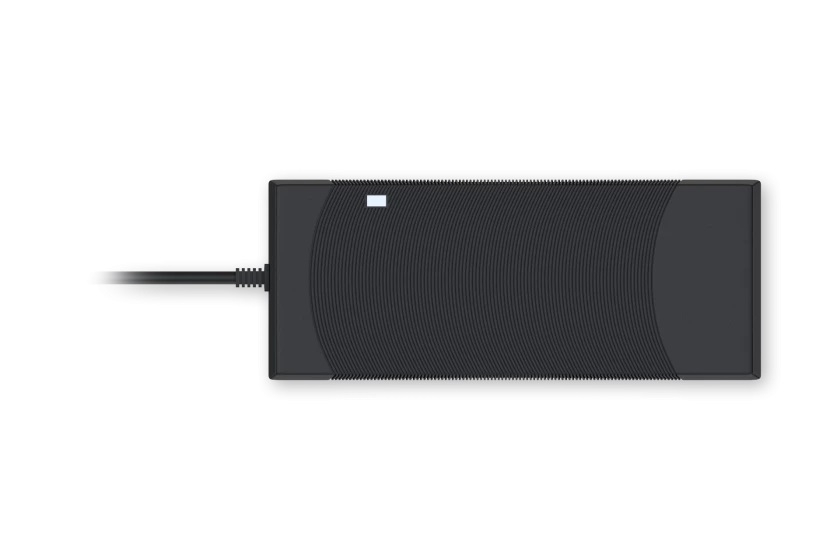

TELTONIKA 2 kontaktų, 130W Maitinimo Šaltinis, EU tipo (PR318EUA)
Jungtis 2 kontaktų, Įtampa: 50V, Srovė: 2.6A, Galia: 130W. Kištukas EU tipo. Tinkamas naudoti su TSW200, TSW202, TSW212 komutatoriais.
52.85€ su PVMKaina be PVM: 43.68€ |
Produkto savybės:
Compatible with TSW200, TSW202, TSW212 switches.
Produkto specifikacijos:
GENERAL
Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz
Input current: 2.5 A
Input connector: EU (Type C)
Output voltage: 50 VDC
Output current: 2.6 A
Output connector: 2-pin, with cord end terminals
Weight: 500 g
ADDITIONAL
Input voltage range: 90 – 264 VAC
Input frequency range: 47 – 63 Hz
Maximum input inrush current: 50 A
Output voltage maximum deviation: 47.5 – 52.5 VDC
Short circuit protection: Yes
HIPOT (dielectric withstand test): Primary to Secondary: 4242 VDC
MTBF: 50000 h
PSU efficiency standard: DoE Level VI
Certification:
Safety: EN 60335-1:2012+A11:2014+A13:2017, EN 60335-2-29:2004+A2:2010+A11:2018, EN 62233:2008
EMC: EN 55014-1:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55014-2:2015 (IEC 61000-4-2:2008, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004+A1:2017)
