TELTONIKA 8 LAN 10/100 Mbps Prievadų Pramoninis DIN rail Nevaldomas Komutatorius (TSW030)

Produkto savybės:

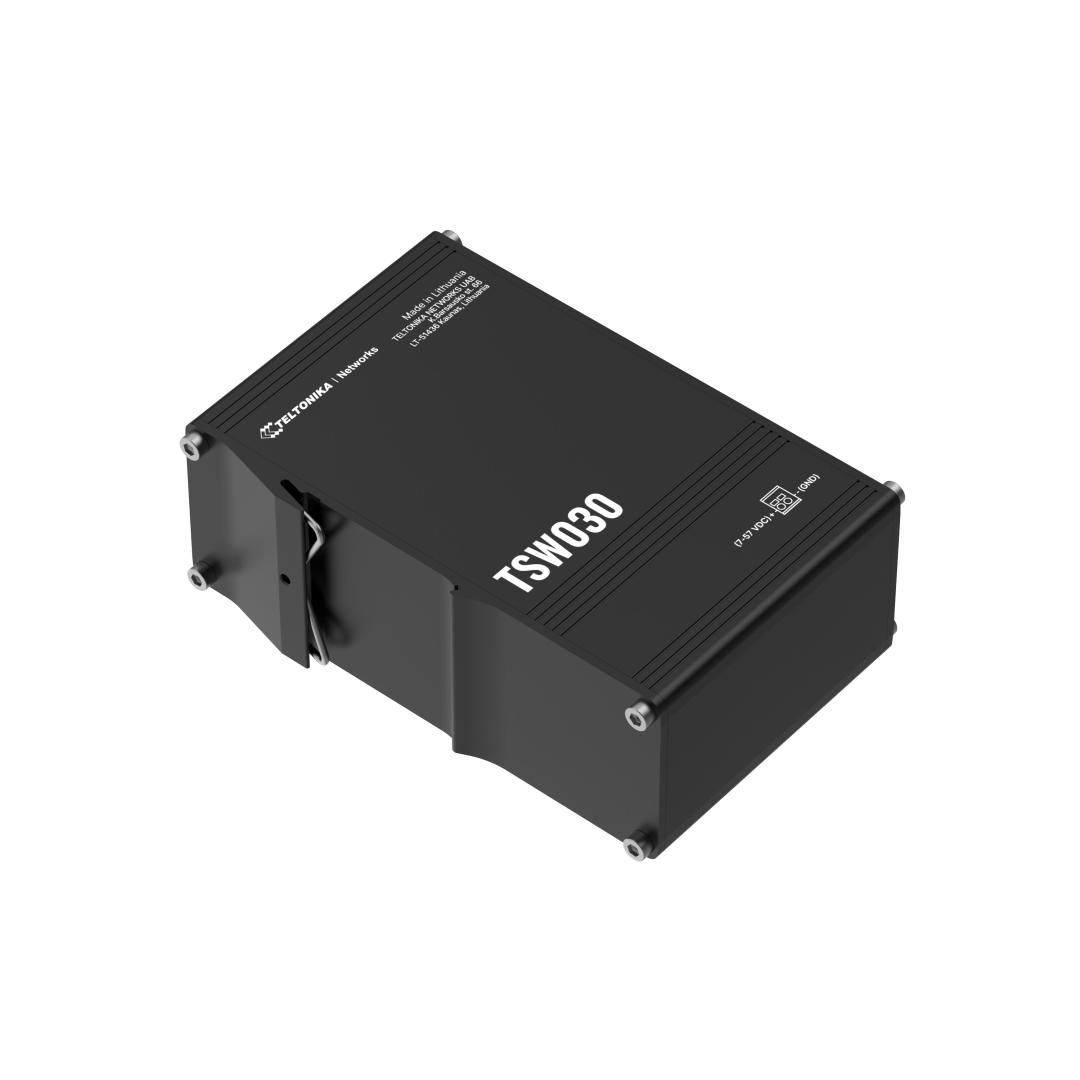

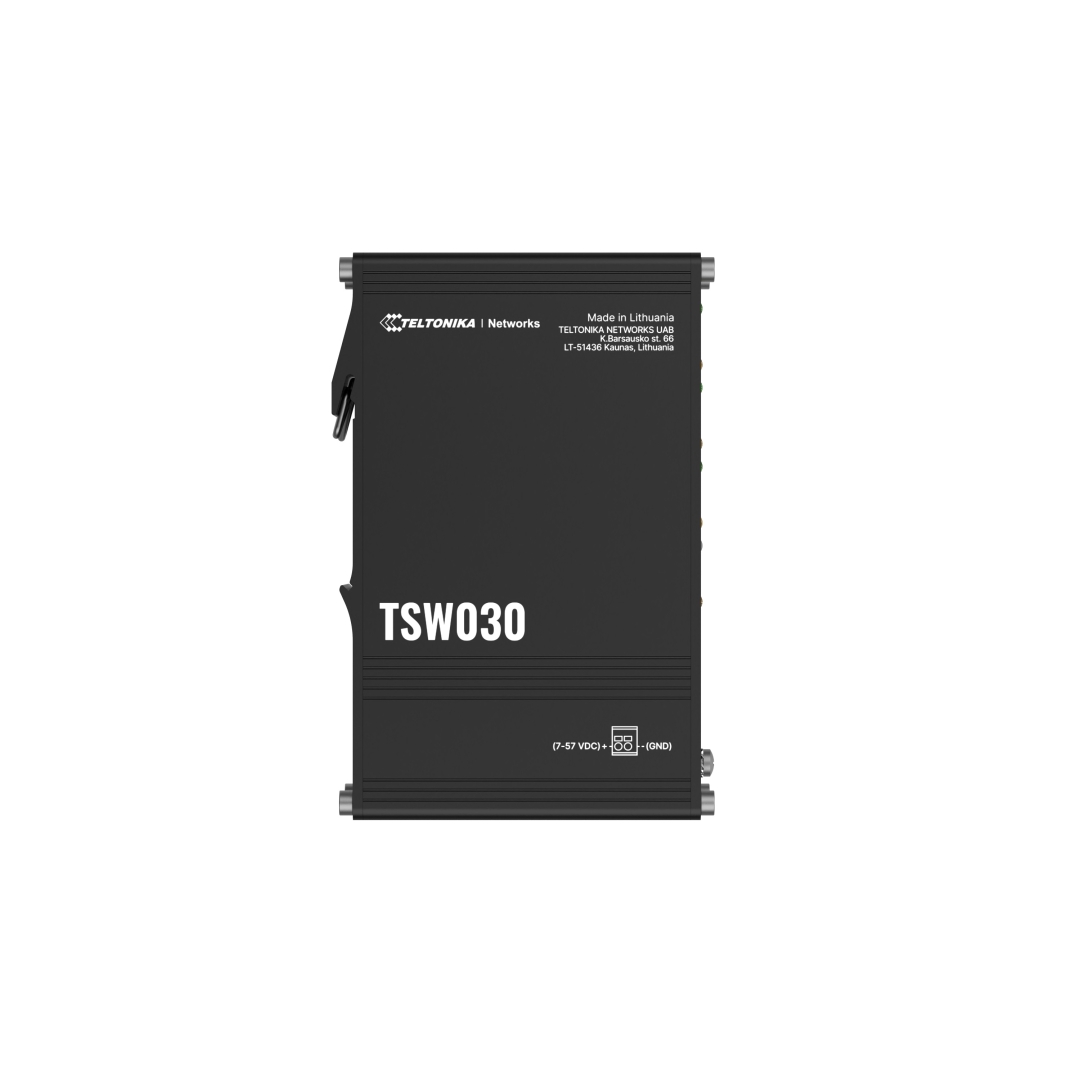

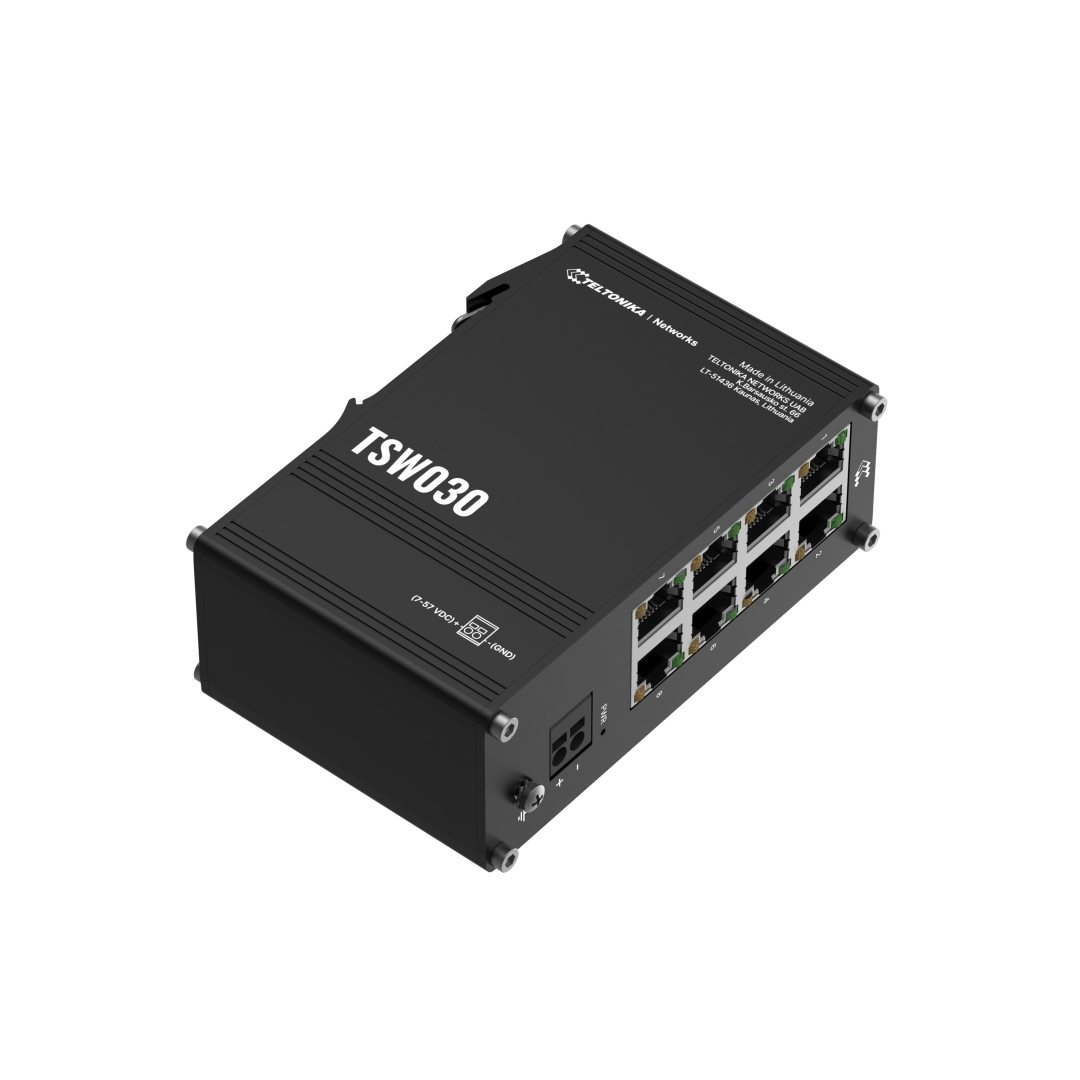

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

Produkto specifikacijos:

Ethernet
LEN: 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Performance Specifications
Bandwidth (Non-blocking): 20 Gbps
Packer buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes

Power
Connector: 2-pin industrial DC power socket
Input voltage range: 7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
Power consumption: Idle: 0.5 W / Max: 1.5 W

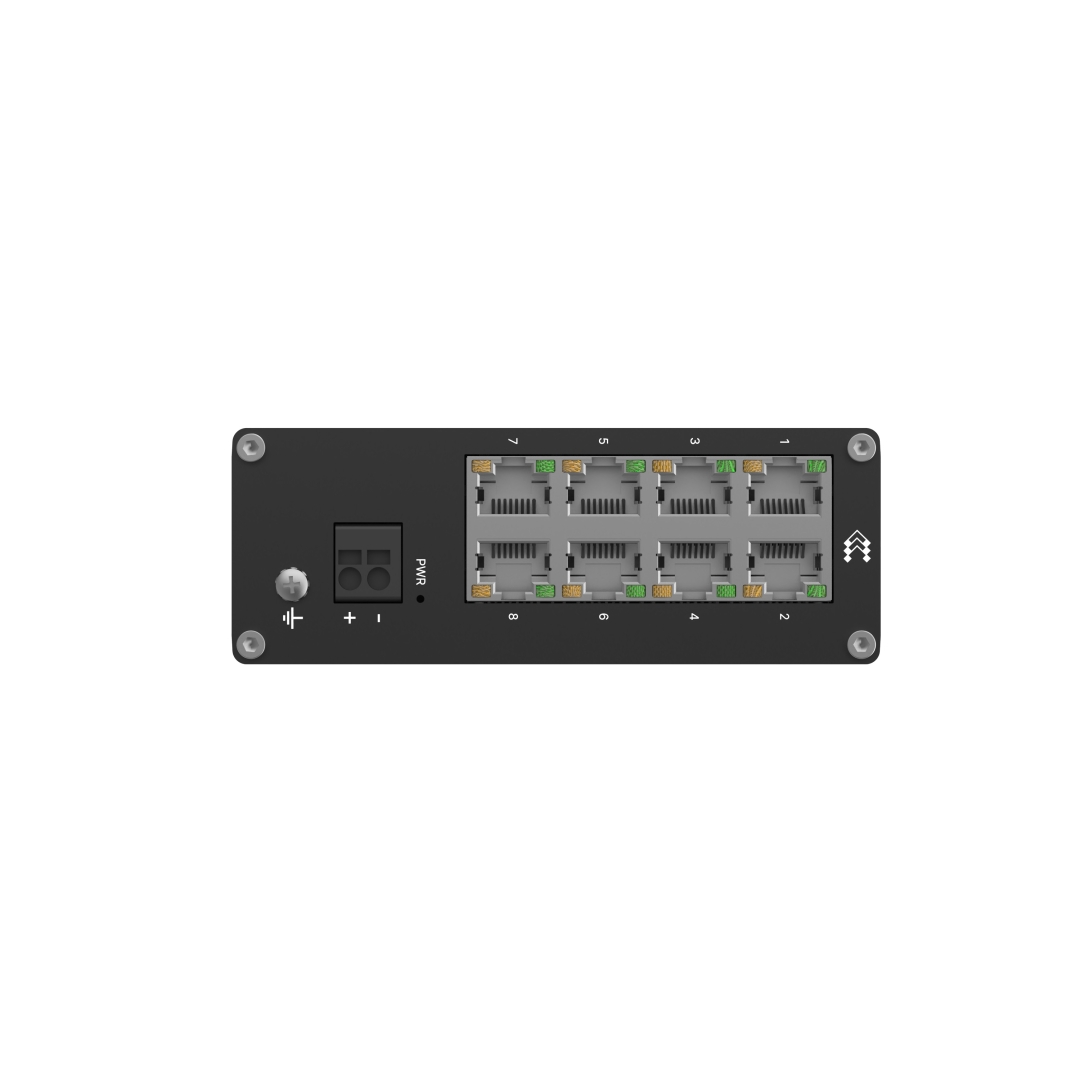

Physical Interfaces
Ethernet: 8 x RJ45 ports, 10/100 Mbps
Status LEDs: 1 x Power LED, 16 x ETH status LEDs
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw

Physical Specification
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 113.1 x 41.2 x 74.6 mm
Weight: 256 g

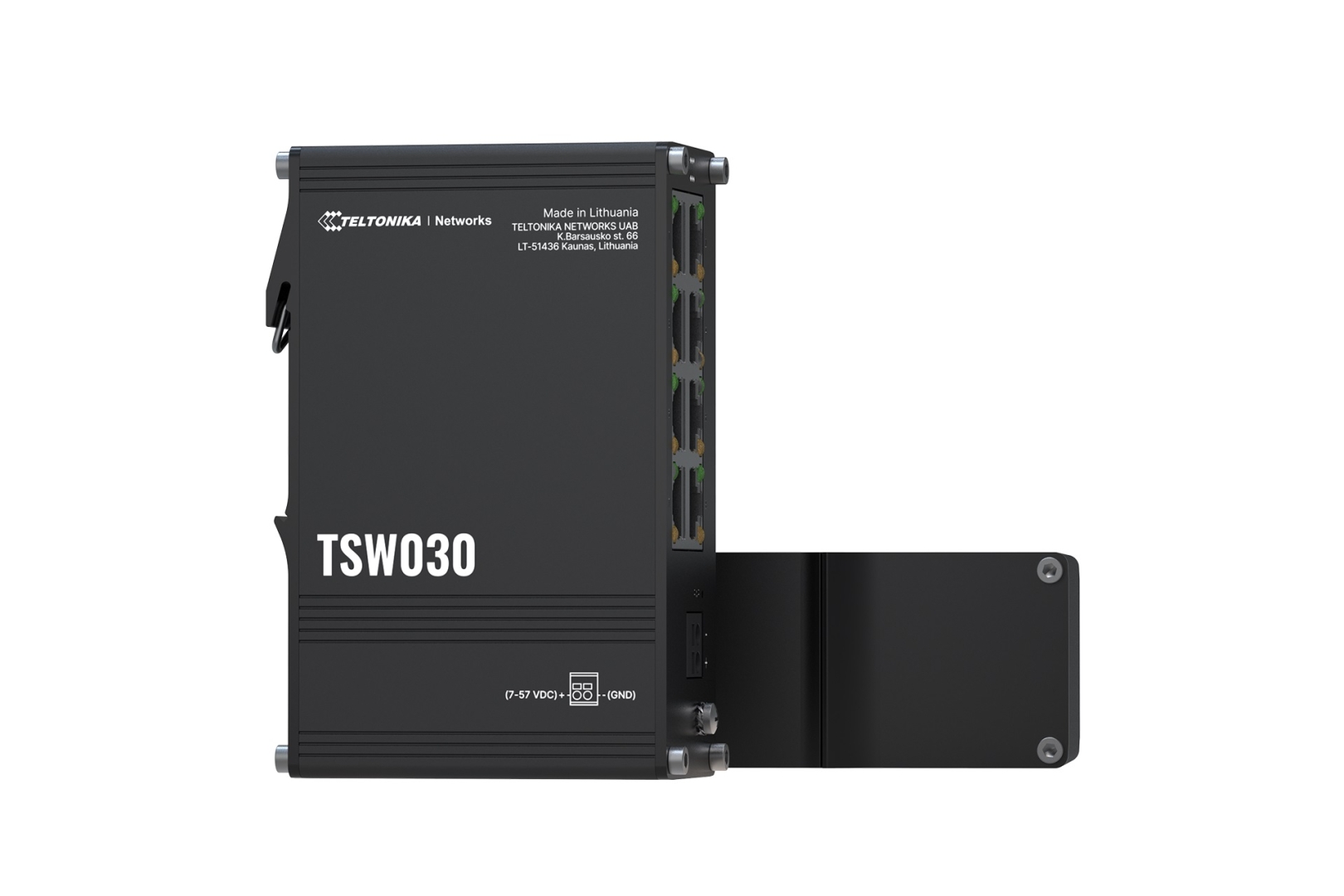

Mounting options: Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30

Regulatory & Type Approvals
Regulatory: CE, UKCA, EAC, UCRF, RCM, FCC, IC, CB

EMC Emissions & Immunity
Standards: EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
ESD: N 61000-4-2:2009
Radiated Immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
CS: EN 61000-4-6:2014
DIP: EN IEC 61000-4-11:2020

Safety
Standards: IEC 62368-1:2018
