UBIQUITI UniFi Switch Pro 8 PoE Valdomas Layer 3 komutatorius (USW-Pro-8-POE)
OEM kodas:
USW-Pro-8-POE
Kodas:
USW-Pro-8-POE
ID:
#4302
Unifi Komutatorius | 8x Gigabitiniai LAN Prievadai (6x 802.3at PoE/PoE+ Prievadai ir 2x 802.3at PoE++) | 2x SFP+ Prievadai | Pilnai suteikiamas maitinimas per visus PoE Prievadus: 120W | Layer 3 valdymas | 1.3" Lietimui jautrus ekranas
325.90€ su PVMKaina be PVM: 269.34€ |
Produkto savybės:
An 8-port, Layer 3 switch with PoE+ and PoE++ output.
Features:
- (6) GbE PoE+ ports
- (2) GbE PoE++ ports
- (2) 10G SFP+ ports
- 120W total PoE availability
Produkto specifikacijos:

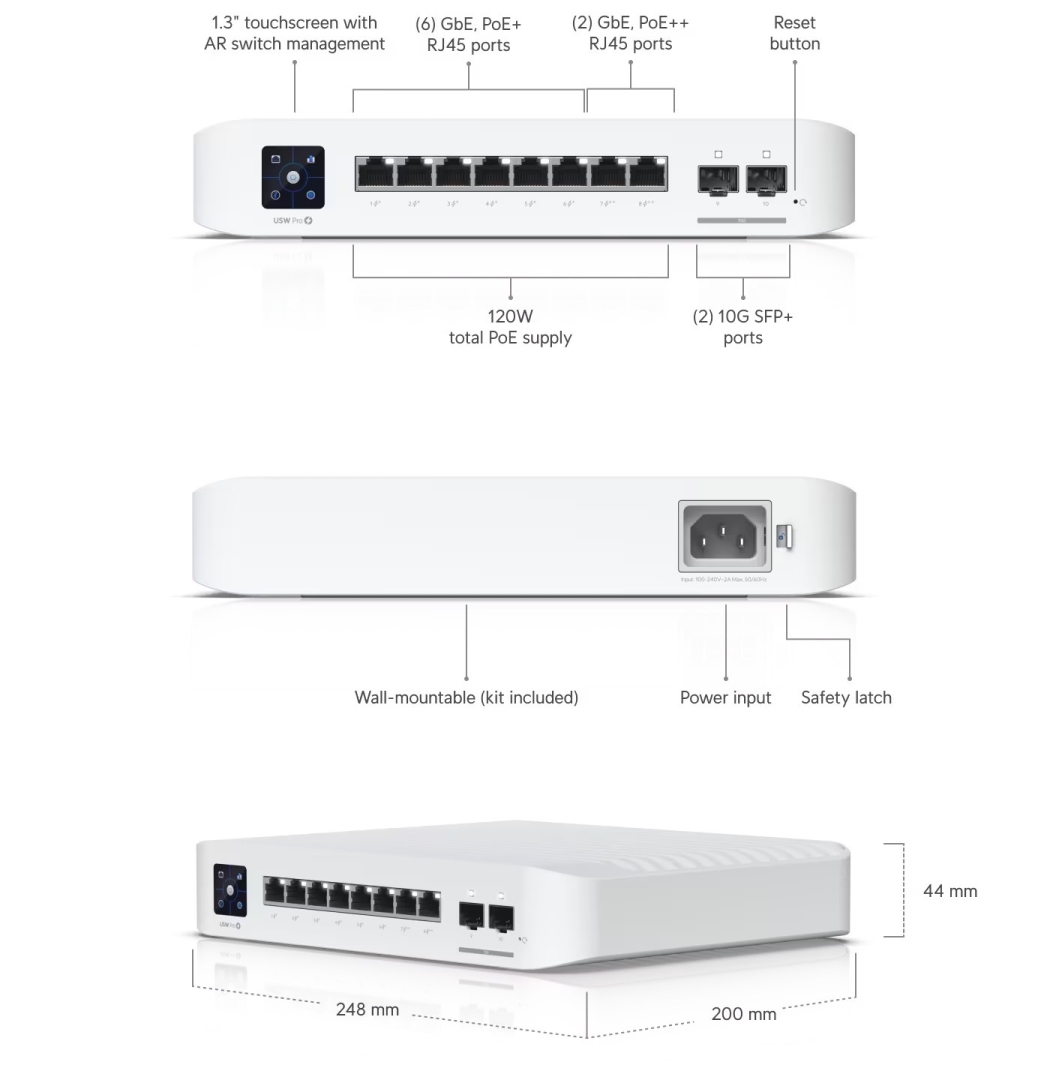

| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure materials | Polycarbonate, metal |
| Mount material | Polycarbonate |
| Hardware | |
|---|---|
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports (2) 10G SFP+ ports |
| PoE interface | (6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 28 Gbps |
| Switching capacity | 56 Gbps |
| Power method | Universal input, 100—240V AC, 2A Max. |
| Power supply | AC/DC, internal |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W (Excluding PoE output) |
| Total available PoE | 120W |
| Max. PoE wattage per port by PSE | PoE: 15W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V PoE++: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| LEDs | RJ45 ports: link/activity |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
| Application Requirements | |
| UniFi Network | Version 7.5.176 and later |
